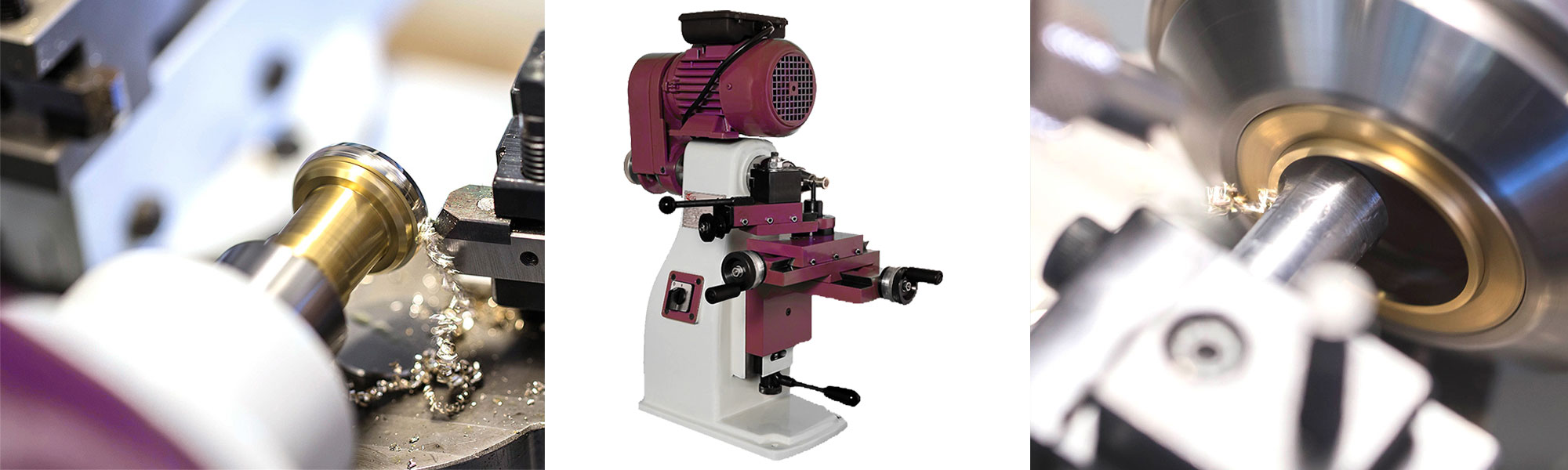

IM Goldfinger Systems
The IM Goldinger lathes series are specially designed for high-quality and efficient machining of wedding rings and bracelets. High productivity is achieved by separating internal and external machining on two machines. All necessary functions such as the processing of folded surfaces, radii, sides and edges can thus be carried out on the machines without conversions. The clamping system specially developed for the machines guarantees very fast and efficient work and high repeatability of the ring geometries.
Technical specifications
IM Goldfinger Inside | IM Goldfinger Outside | |
Drive | 0,55 KW with fast stop | 0,55 KW with fast stop |
Rotation speed | 0 – 1.400 rpm. | 0 – 1.400 rpm. |
Connection | 380 V; 50/60 Hz | 380 V; 50/60 Hz |
Turning | inside radius, inside flat, front side and chamfer | outside radius, outside flat, chamfer, outside designs |
Dimensions | 300 x 600 x 650 cm | 300 x 600 x 650 cm |
Weight | 100 | 100 kg |
Optional | interchangeable vertical and horizontal head, minimal lubrication system, additional support for turning straight | minimal lubrication system, quick-release system |
